Here you can see how to install the SET725

The Manitou Mastodon fork has a unique design that requires a couple of extra steps compared to a standard axle swap. Follow the steps below and you’ll be ready to carry whatever gear you’d like on you Manitou Mastodon fork.


Tools you will need:

  • Pin-spanner or Manitou Pin Tool
  • 6mm hex
  • Torque wrench
  • Grease

STEP 1: Remove your bike’s stock thru axle

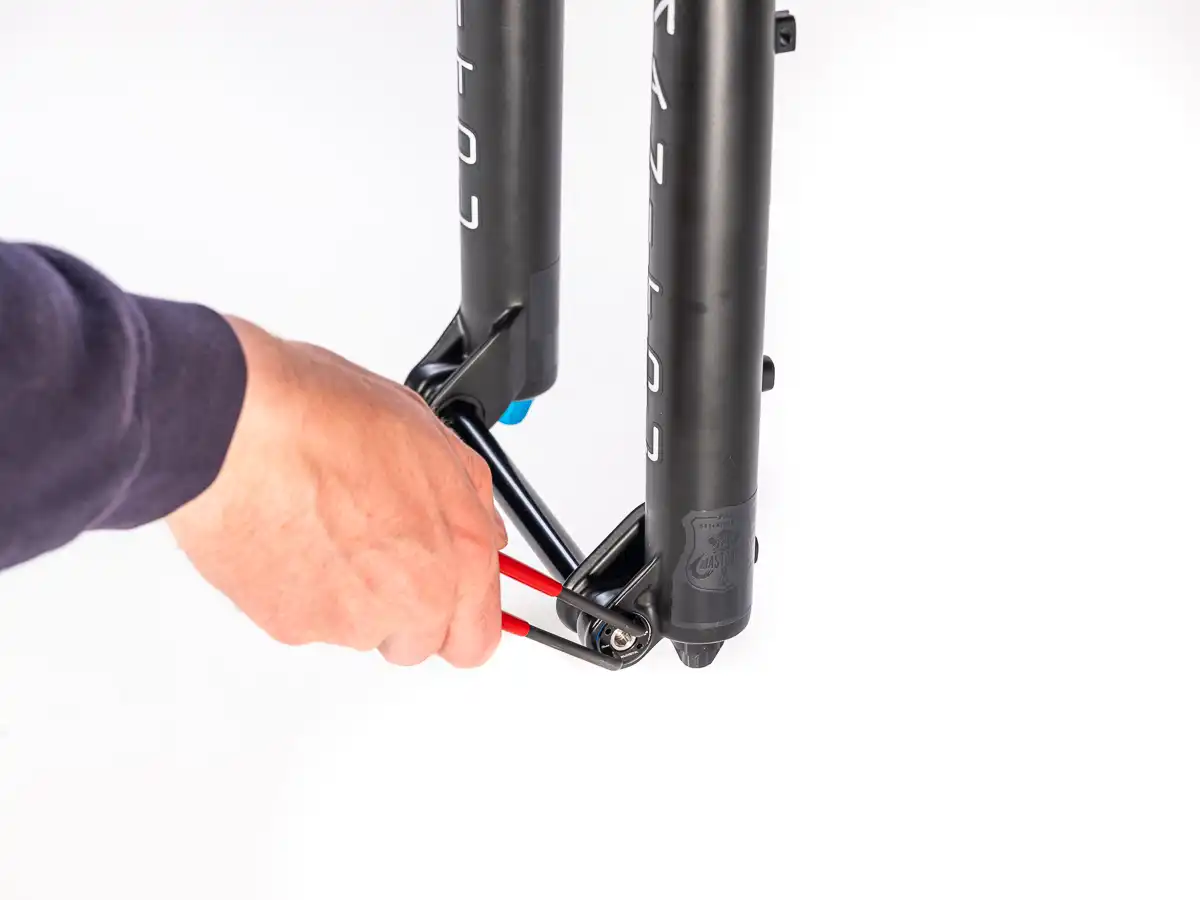

Use the 4-pin Manitou tool or a pin spanner to remove the Hexlock bolt retainer.


SET725 Manual

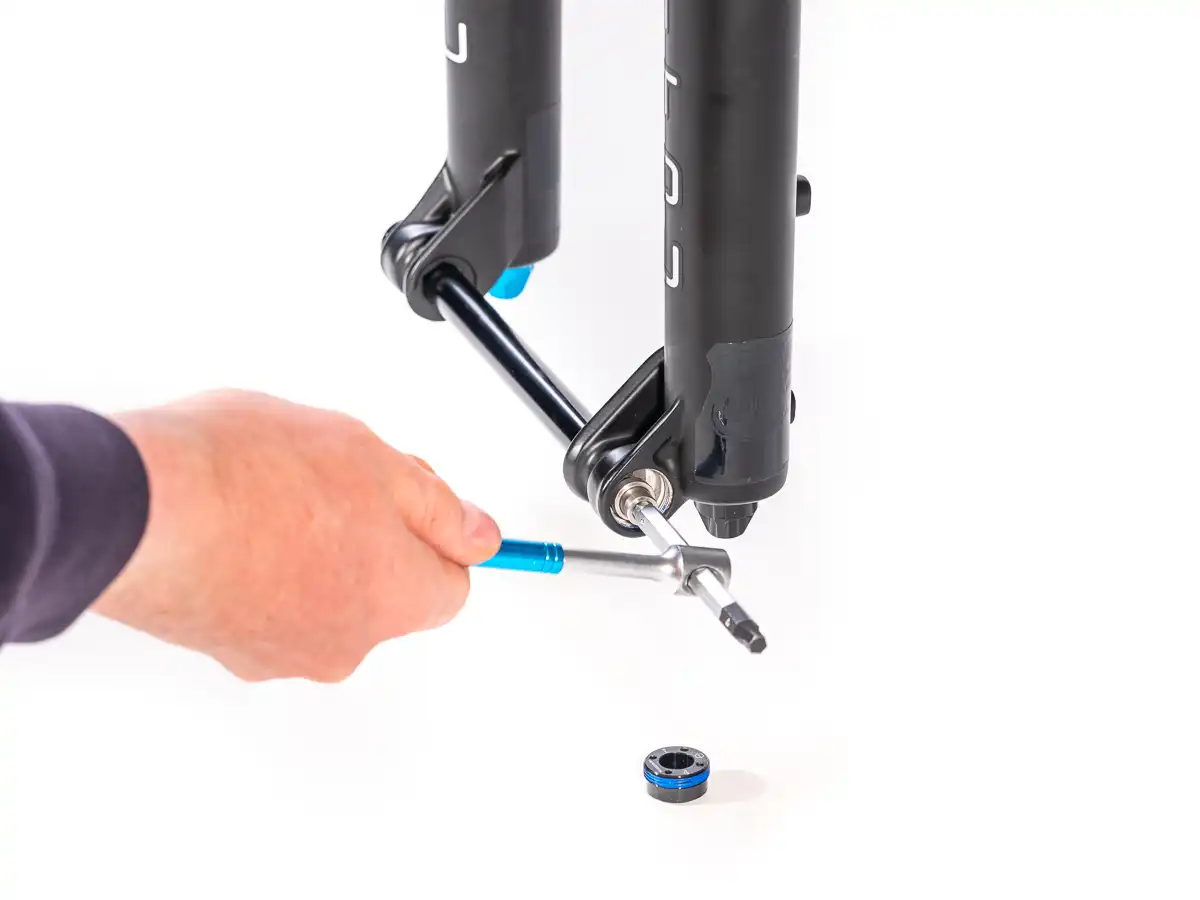

Now use a 6mm hex to remove the HexLock bolt and spacer.


SET725 Manual

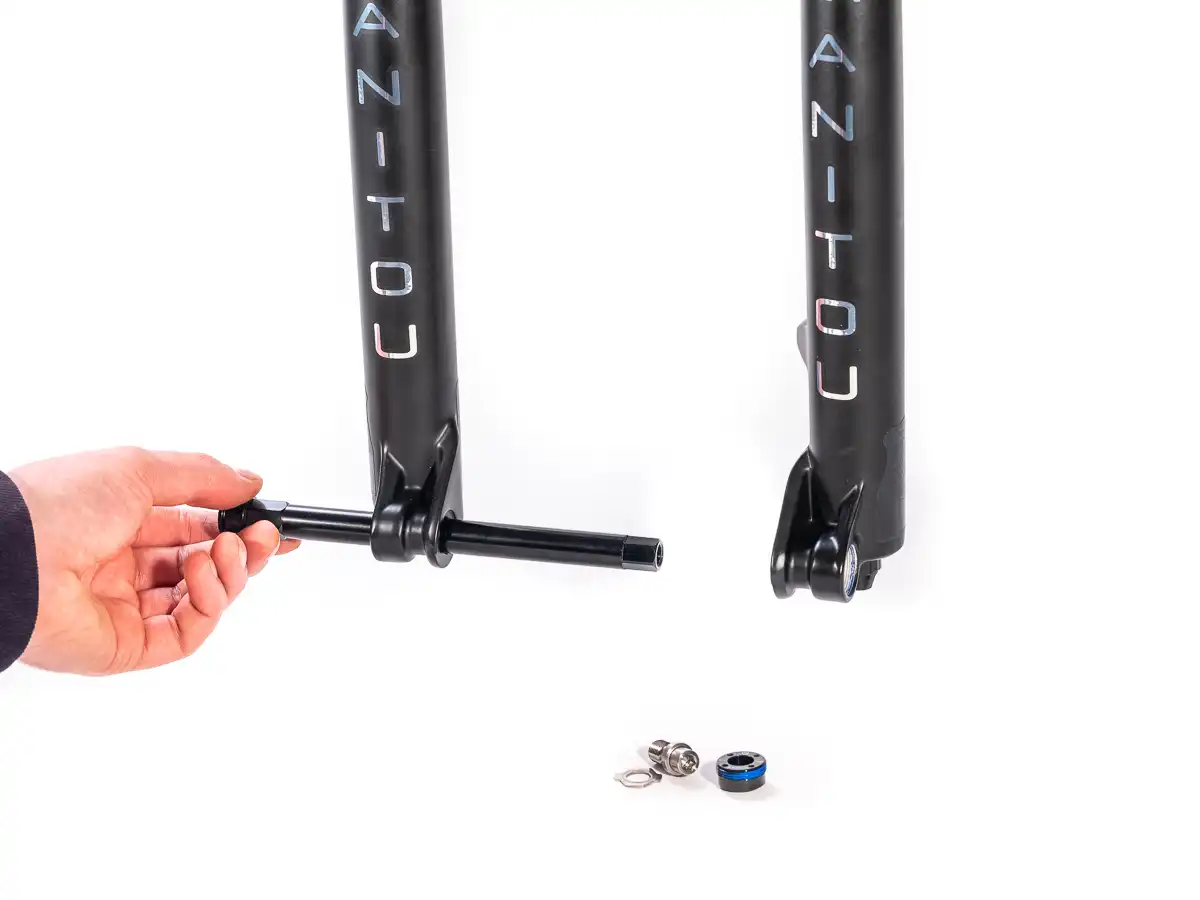

With those pieces removed you can slide the axle out. Set it and the HexLock aside. You will still use the retainer and spacer with the Old Man Mountain Fit Kit.


SET725 Manual

STEP 2: Install the Old Man Mountain hexlock bolt

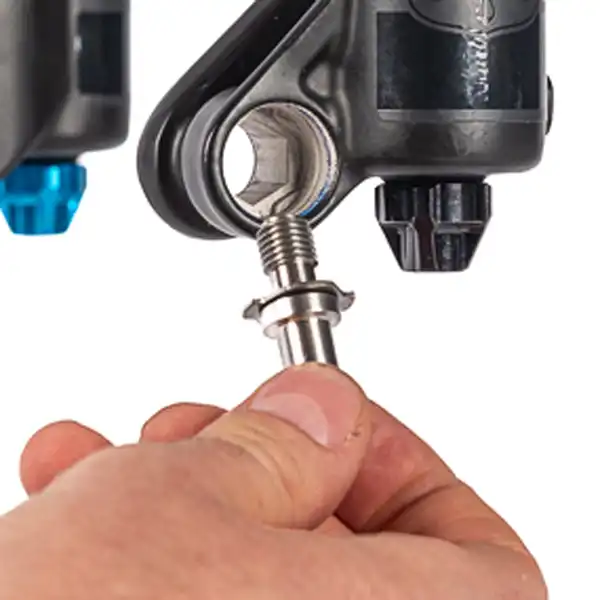

Place the spacer onto the threaded side of the Old Man Mountain supplied HexLock bolt as shown below. Insert the bolt and spacer into the fork bolt side first.


SET725 Manual
SET725 Manual

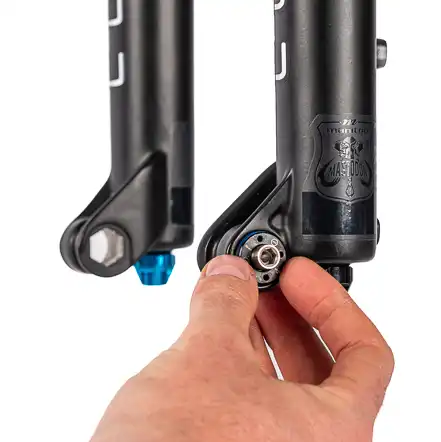

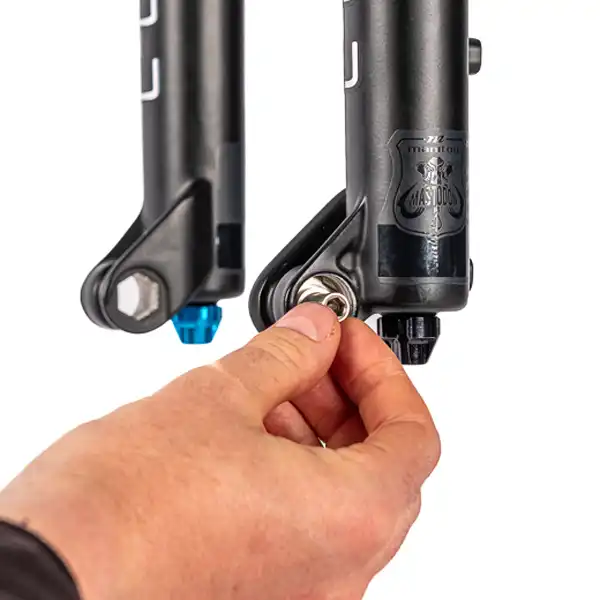

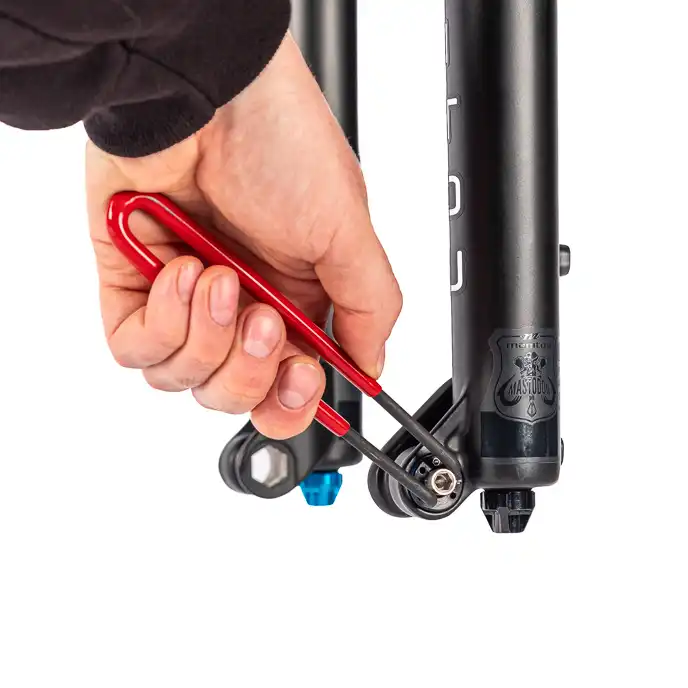

Thread in the retainer by hand to ensure that it is not cross threaded. Once started, use a pin spanner or the Manitou retainer tool to tighten the retainer to 6nm.


SET725 Manual
SET725 Manual

You can now install your wheel and axle like normal.



GOOD JOB! YOU'RE NOW RIDE TO RIDE.
We are excited to be a part of your biking adventures.
Thank you for using Old Man Mountain Racks!
